Description:

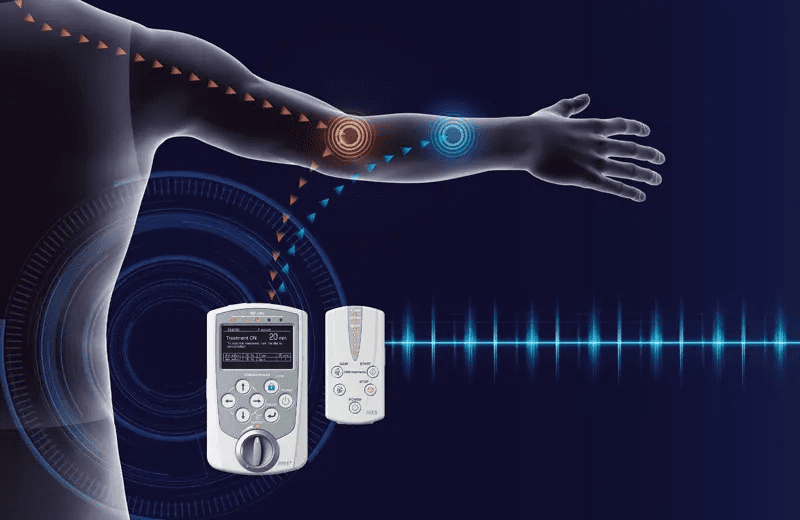

How FES technology works in the device

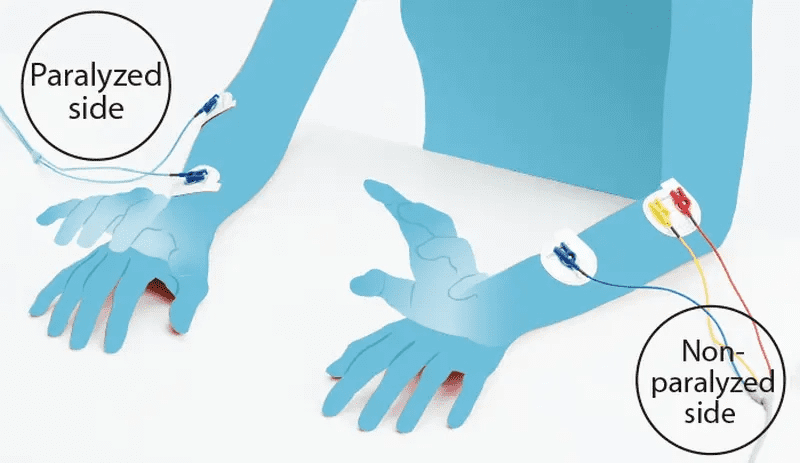

IVES™ uses an advanced approach involving functional electrical stimulation (FES). This technology allows precise stimulation of upper and lower limb muscles by sensing electrical signals (EMG), which helps in the rehabilitation of a variety of problems such as injuries or neurological diseases.
Using FES technology, IVES™ provides adaptive stimulation that activates weakened muscles and stimulates their development. This leads to faster progress in rehabilitation, as the stimulation is based on the patient’s needs and condition.
Main advantages of the IVES electrical stimulator
1
Six stimulation modes
Power AssistExternal AssistTriggerExternal TriggerNormalSensor Trigger
The device offers
six stimulation modes, allowing the therapist to individually tailor the therapy and adapt the treatment to the different needs of patients.
2
Settings storageStores settings for up to 45 patients, so treatment can be restarted quickly without having to set it up again at each visit.
3
Support for therapists and patientsThe therapist easily sets up the treatment, which the patient can then use independently at home or anywhere.
4
Compact and easy to useIVES™ is lightweight (only 95 g) and portable, making it easy to use anywhere. At the touch of a button, treatment starts quickly.
Technical data
Treatment time: Normal mode, Trigger mode, Power Assist mode, External Trigger mode, External Assist mode 5, 10, 15, 20, 25, 30 minutes and continuous Sensor Trigger mode: continuous only
Output frequency: 20 Hz: Power Assist Mode, External Assist Mode 1 to 100 Hz: Normal Mode, Trigger Mode, External Trigger Mode, Sensor Trigger Mode
Place of manufacture: Japan
Maximum output voltage: 210 Vp-p (at 500 Ω load)
Maximum output current: 35 mArms (Frequency: 100 Hz, Load resistance: 500 Ω)
Treatment modes: Normal mode / Trigger mode / Power Assist mode Sensor Trigger mode (when using a walking sensor) External Trigger mode (when using a 2-pole electrode cable) External Power Assist mode (when using a 2-pole electrode cable)
Rated power supply: 6 VDC (four AA batteries)
Weight: Approx. 300 g (including batteries)
Safety features: Over-current protection function Zero-start protection for safe output operation, operation lock function Low battery voltage alarm
External dimensions: Approx. 85 × 145 × 35 (H) mm
